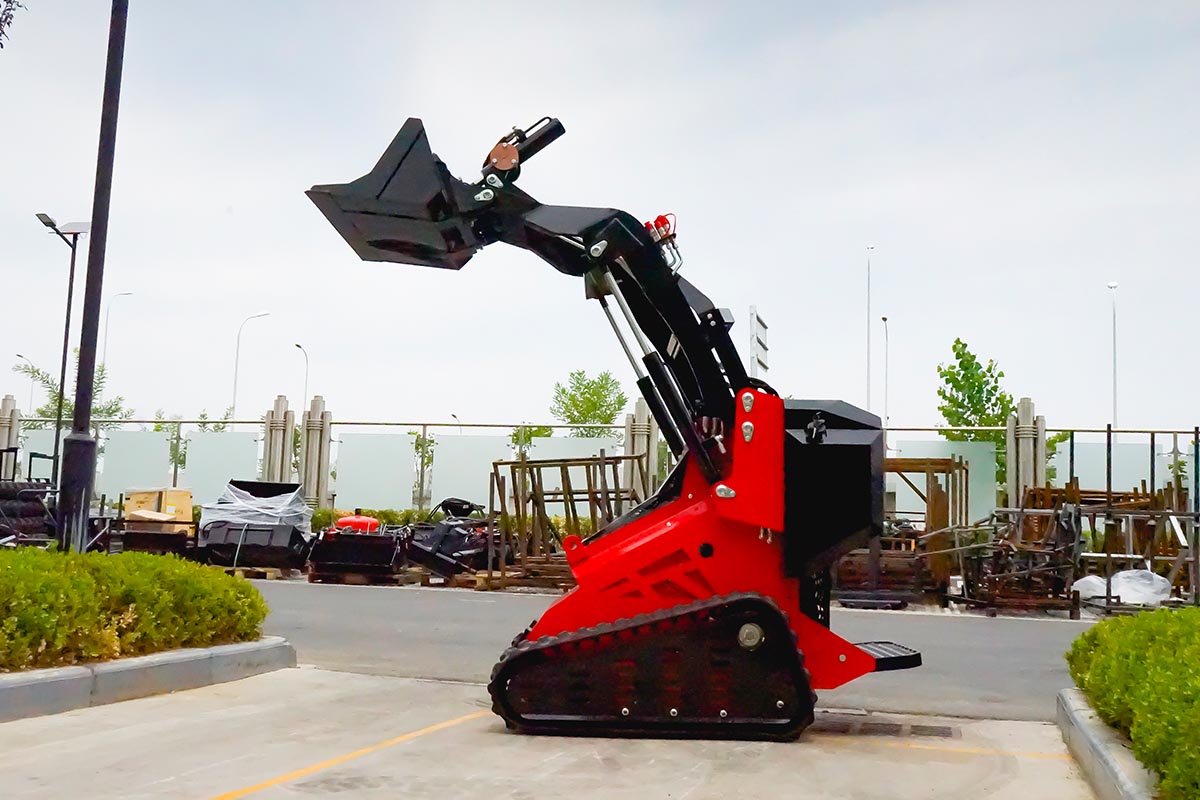

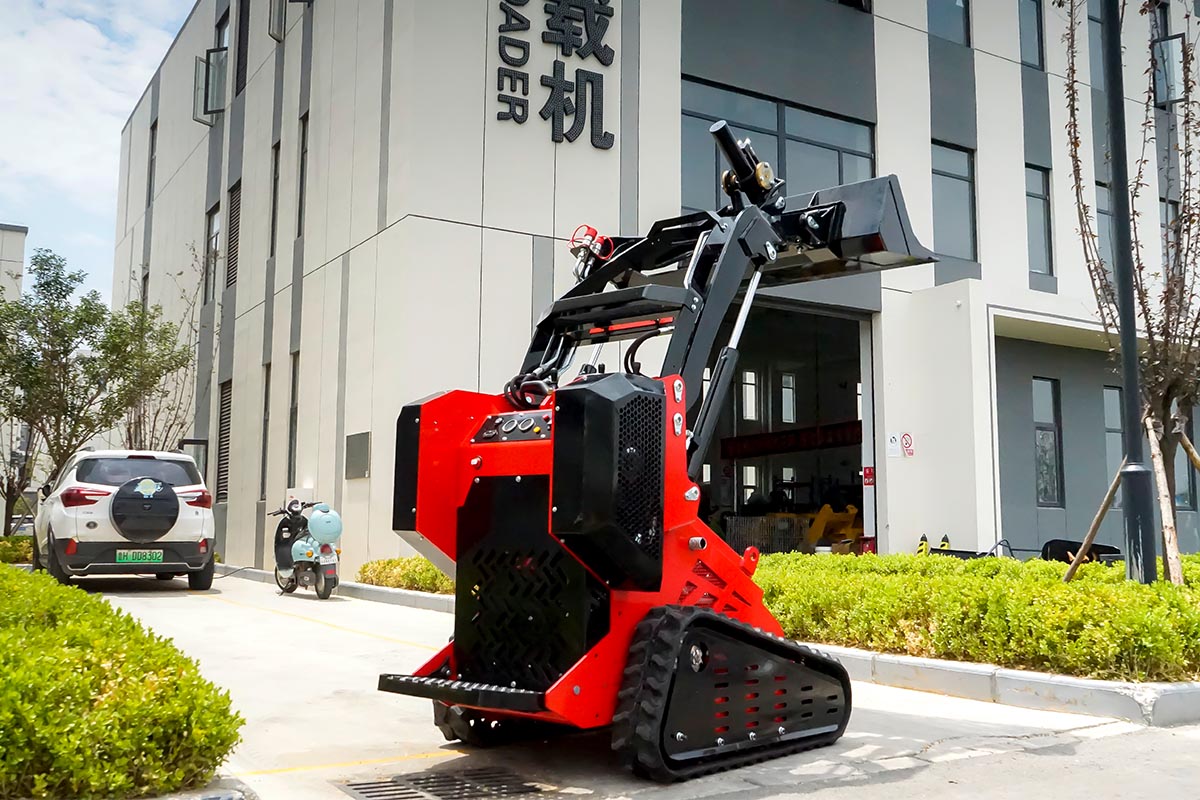

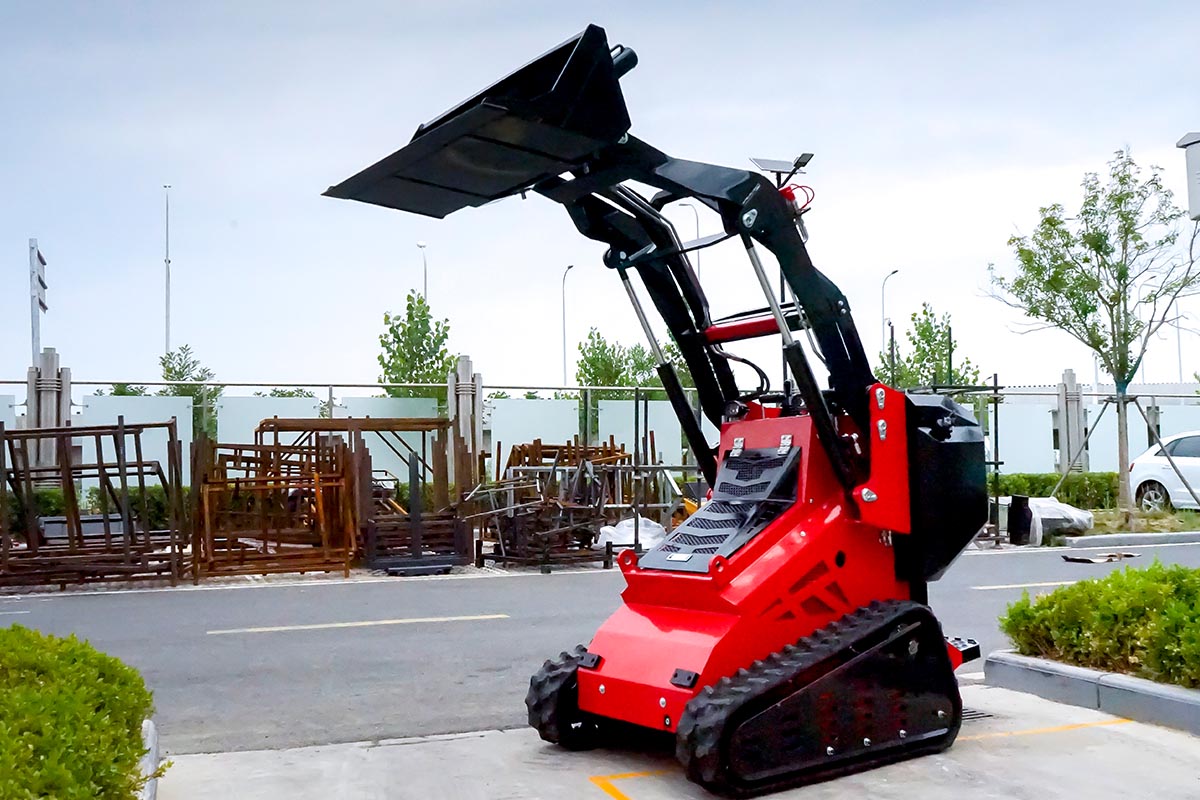

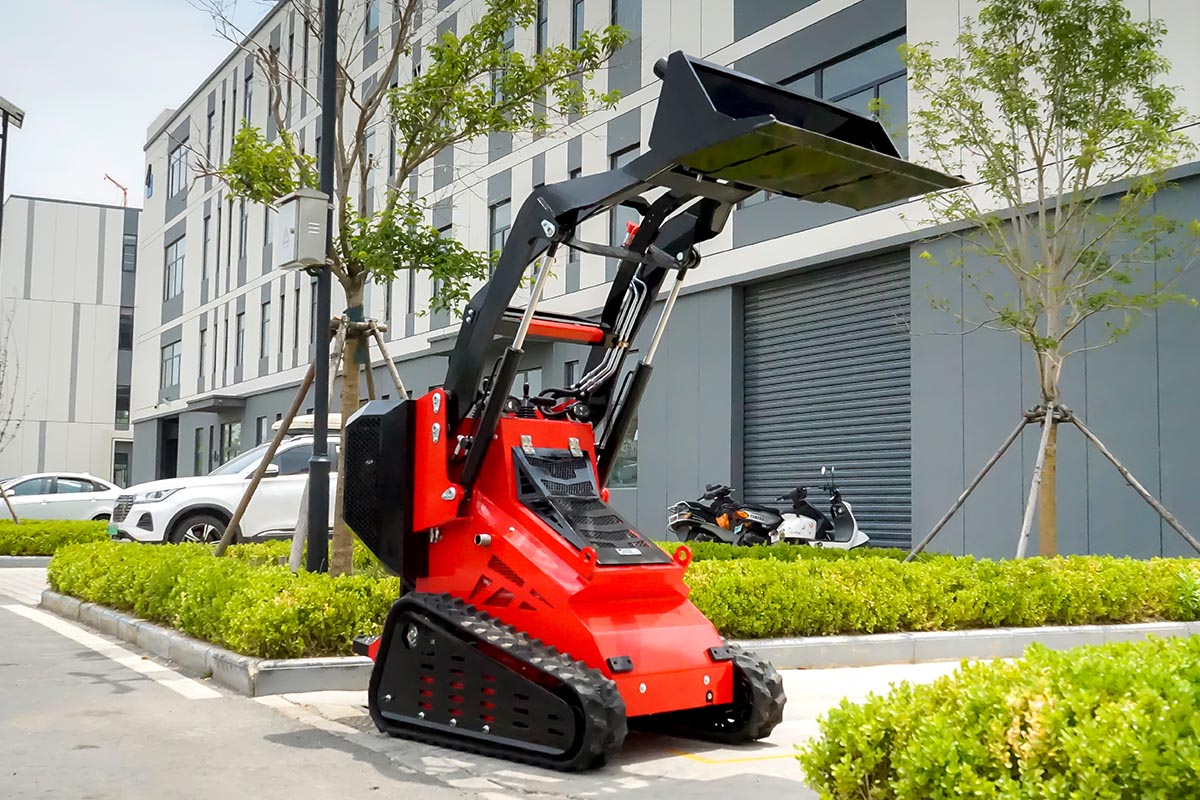

GC-S470T crawler skid steer loader has become a reliable partner for construction work with its excellent performance and flexible adaptability. It offers a wide range of power options, including electric, Lycoming 385, Yanmar 380, and Kubota D1105. The electric model realizes zero-emission and low-noise operation with 14kw power, 72v voltage, and 200ah capacity; while the fuel model outputs 18.6/18.4/14kw rated power, and the three-cylinder naturally aspirated engine is strong and stable, and all of the models satisfy the stringent emission standards of Euro 5/EPA. 1400KG operating mass is matched with 400Kg rated load, 0.15m³ bucket, and 0.5m³ load capacity. The 1400KG operating mass with 400Kg rated load, 0.15m³ bucket volume and 4.5KN maximum digging force, together with the 1807245 track design, can easily cope with the difficult challenges of complex terrain and the strict requirements of fine work.

Usage Scenarios

Mountain construction: In the rugged mountain construction site, with 240mm ground clearance and 1300mm track grounding length, together with the 1807245 track model, providing strong grip and stability, the T750 can easily transport building materials and excavate earth without fear of mud and steep slopes, ensuring the smooth progress of the project.

Interior Decoration and Remodeling: 970mm width and 1550mm height make it free to go in and out of elevators and narrow corridors, and efficiently removes construction wastes; 0.15m³ bucket volume and 25bar pressure of the working system quickly complete the handling of renovation materials, and the working triple of 9s greatly improves the working efficiency.

Agricultural and forestry operations: Shuttle in the farm, forestry, electric models of zero-emission, suitable for greenhouses, warehouses and other closed environments to carry fodder, agricultural products; fuel models of lasting power in the wild wood transportation, track design to help easily cross the gullies, gravel roads, 400Kg rated load to meet the needs of daily transportation.

Municipal garden maintenance: For greening construction in parks and streets, the T750 can accurately complete seedling transplanting and earth trimming with a bucket turning angle of 27°-114°; the adjustable driving speed of 0-6km/h can be adapted to different operating rhythms, and the short rear end and flexible steering design can also work flexibly in narrow greening zones.

Main parameters

Why GC-S470T

1. Diversified Power, Adaptable to All Scenarios: The electric model is quiet and environmentally friendly, suitable for indoor and greenhouse scenarios, while the fuel model has long-lasting power and is capable of handling complex outdoor working conditions, meeting the needs of all kinds of operating environments.




2. Crawler empowered, terrain conqueror: 1807245 crawler model and 1300mm crawler grounding length, combined with 240mm ground clearance, provide strong grip and high stability, and easily cope with mud, steep slopes, gravel and other complex terrain, as if walking on the ground.




3. Efficient operation, excellent performance: 400Kg rated load and 0.15m³ bucket volume, combined with 4.5KN maximum digging force and 25bar working system pressure, material handling, loading and unloading are highly efficient; 9s working three items and greatly shorten the working time and improve the overall efficiency.




4. Flexible and compact, easy to maneuver: 970mm width, 500mm short tail design, flexible steering, free to shuttle in narrow spaces; 27° - 114° bucket turning angle, precise operation, to meet the requirements of refined operations.




5. Environmental compliance, wide range of applications: meets the Euro 5/EPA emission standards, no environmental restrictions; widely used in engineering construction, renovation and remodeling, agriculture and forestry operations, municipal landscaping and other fields, helping the efficient development of various industries.

Contact us today for customized configurations and real-time quotes.
