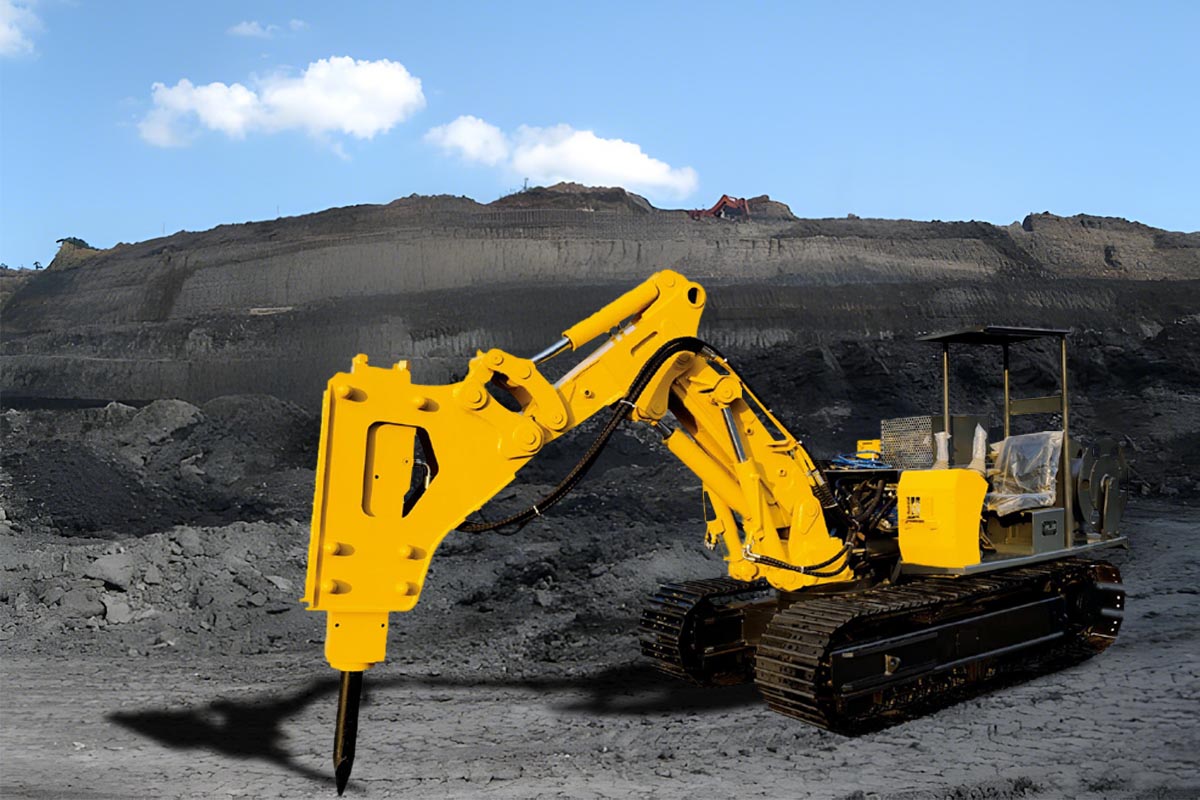

GC-CR100 crawler type tunnel boring crusher is a high efficient equipment specially designed for tunnel boring and crushing operation. 7T weight with 4600mm×1640mm×2650mm body, while ensuring the stability, can adapt to most of the tunnel space. 45/55kw motor power to provide strong power, the rated working pressure reaches 25mpa, equipped with 85/100 crushing hammer, crushing capacity 0-10m³/h, can easily deal with the rock and concrete and other hard materials in the tunnel to provide strong support for the construction of roadway boring. 85/100 crushing hammer, crushing capacity of 0-10m³/h, can easily cope with the roadway rock, concrete and other hard materials, tunneling construction for the roadway to provide strong crushing support.

Usage Scenarios

Mining roadway excavation: In the process of mining roadway development, facing the hard rock layer, GC-CR100 can show its strength. The ≥3m×3m cross-section enables it to work in most of the mining roadways, and the ≥4500mm crushing width can crush a large range of rock bodies at one time, and with the ≤18° climbing ability, it can be adapted to the sloping roadway excavation and accelerate the progress of mining roadway development.

Tunnel construction crushing: This machine is ideal for tunnel construction when encountering rock formations or needing to break part of the surrounding rock. The maximum slewing angle of ±40° makes the crushing operation more flexible, the crushing height of ≥4000mm can deal with the rock at the top of the tunnel, and the crushing depth of ≥1500mm can effectively crush the rock at the bottom, and the traveling speed of 3.1m/min and 2m/min can be flexibly adjusted according to the construction rhythm, which can guarantee the smooth progress of tunnel construction.

Underground engineering renovation: in the process of renovation of underground pipeline corridors, underground warehouses and other projects, the need to break the original concrete structure or rock layer, the GC-CR100 can play an important role. 1640mm width can be moved in a limited space, 200mm ground clearance to avoid collision with the ground obstacles, 85/100 crusher hammer can be accurately crushed the target structure to reduce the impact on the surrounding facilities.

Main parameter

Why GC-CR100

1. Strong power, efficient crushing: 45/55kw motor power with 25mpa rated working pressure, to provide sufficient power for crushing operations, 85/100 crushing hammer with a crushing capacity of 0-10m³/h, can quickly crush hard materials, greatly enhancing the tunnel boring and crushing efficiency.




2.


   Flexible operation, widely adapted: ± 40 ° of the maximum rotary angle, ≥ 4500mm crushing width and can be adapted to different heights and depths of the crushing parameters, so that it can be flexible in a variety of roadway environment to meet the different needs of crushing.




3. Stable and reliable, good passability: 7T weight ensures the stability of the machine during crushing operation, 200mm ground clearance and crawler design enable it to pass smoothly in uneven roadway ground, and ≤18° climbing ability adapts to sloping operation scenarios.




4. Precise operation, safety guarantee: the parameters of the equipment are reasonably designed to realize precise crushing, reduce the damage to the surrounding structure, and better guarantee the construction safety during the operation, creating a safe working environment for the roadway construction.

Contact us today for customized configurations and real-time quotes.
