Products

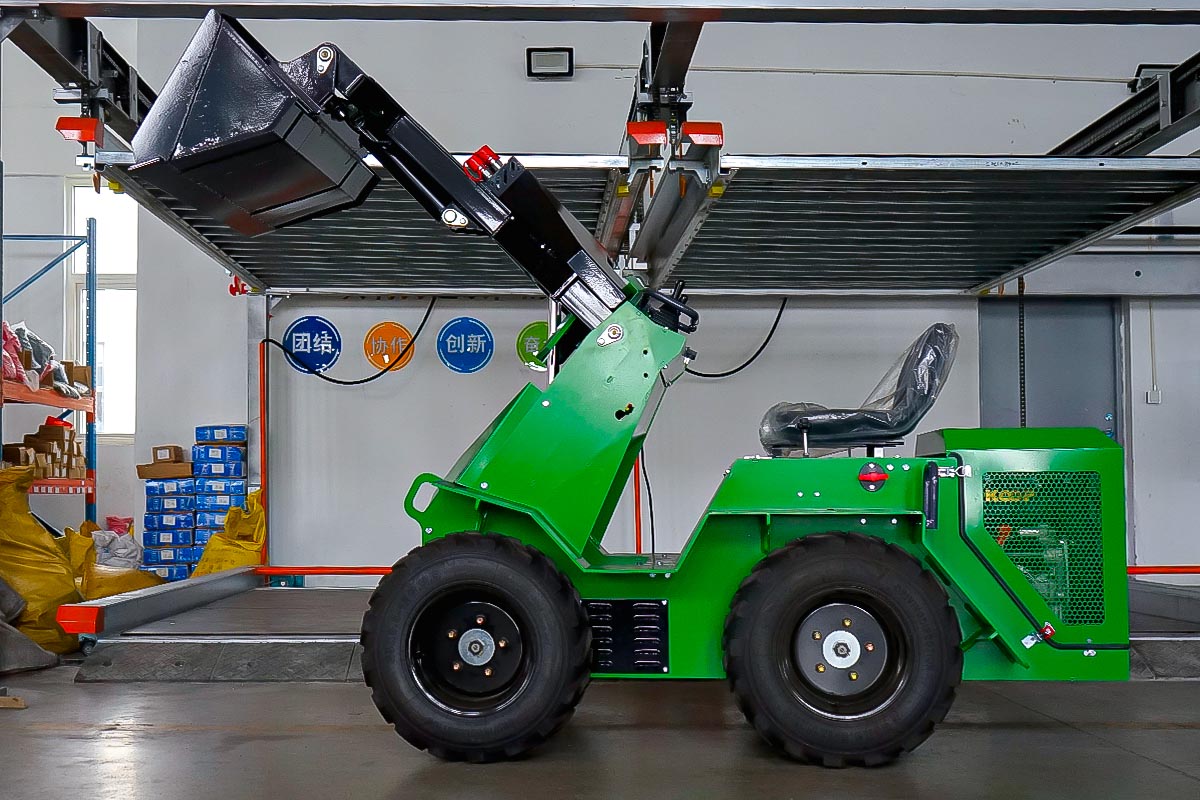

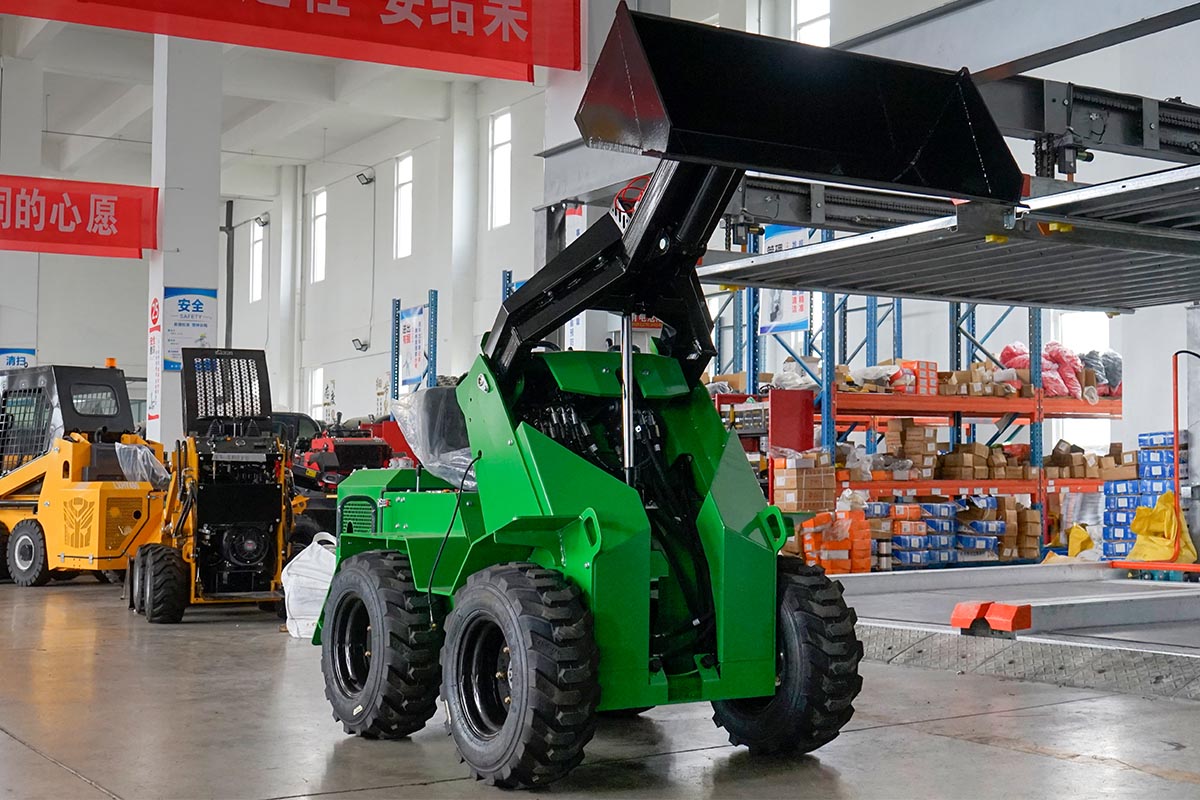

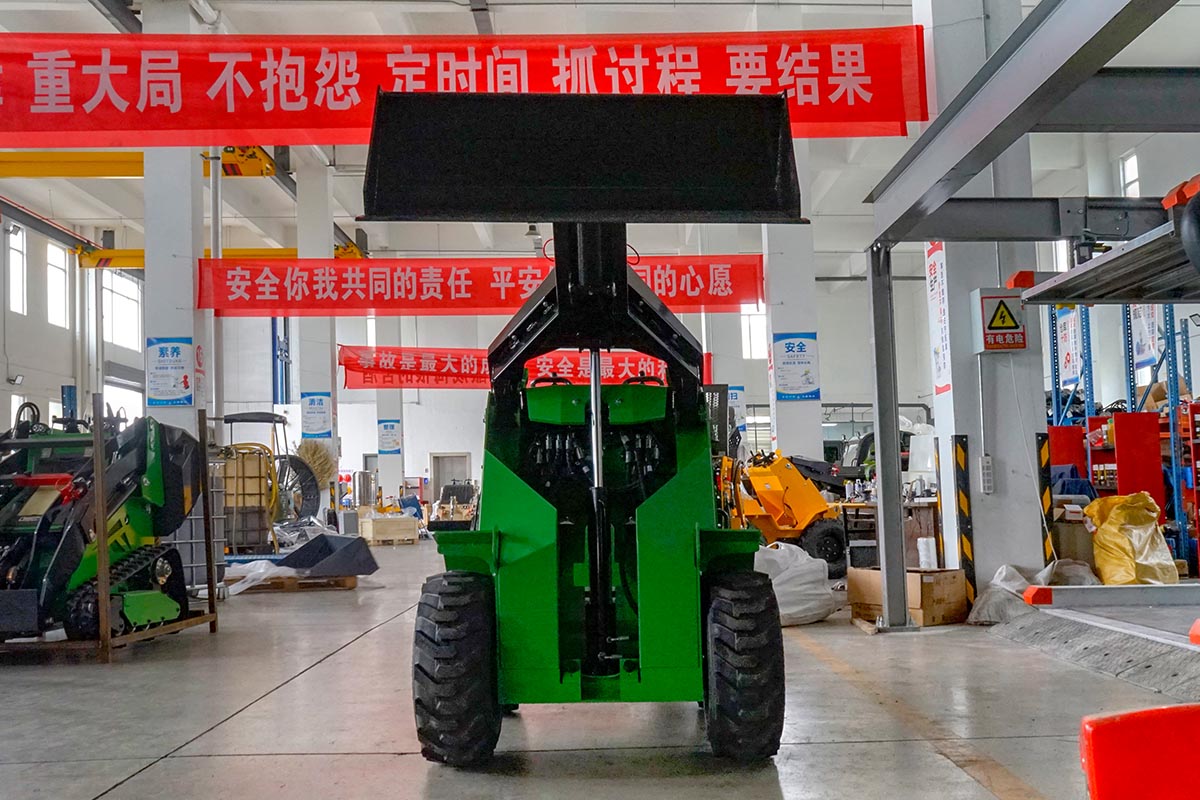

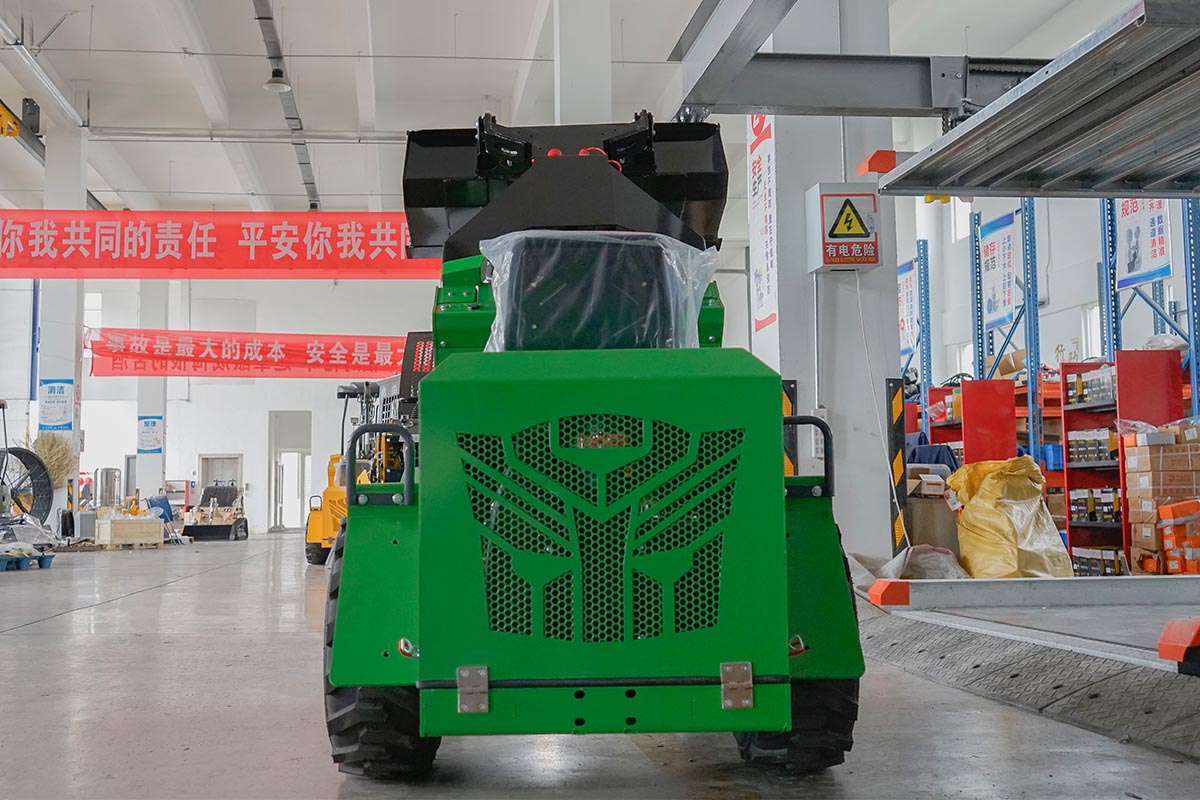

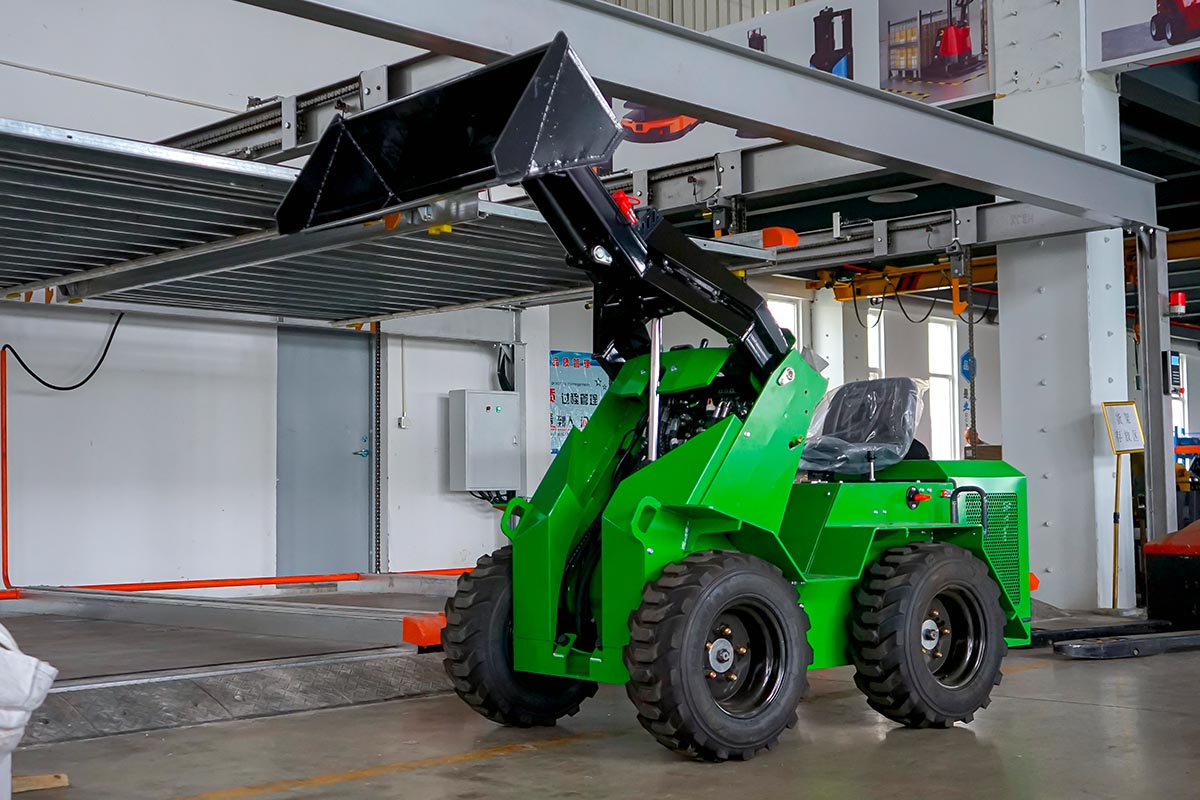

GC-S490L wheeled skid steer loader is a multi-functional and high-performance engineering tool. It is available in electric, Kopper, Runton and Paragon power options, the electric model with 8kw power, 72v voltage and 200ah capacity, realizing zero-emission and low-noise operation; the fuel model is powered by different brands of engines outputting 15-19.2kw rated power, with a strong power of twin-cylinder naturally-aspirated design, and all of them comply with the stringent emission standards of Euro 5/EPA. 1200KG operating quality is matched with 250Kg rated load, 0.12m³ bucket volume, and 4.5KN maximal emission standards. With 250Kg rated load, 0.12m³ bucket volume, and 4.5KN maximum lifting force, it can easily cope with both light material handling and fine site work.

Usage Scenarios

Indoor renovation: with a width of 1100mm and a height of 1300mm, it is easy to get in and out of elevators and hallways of residential and office buildings; the 0.12m³ bucket quickly removes construction waste, and the pressure of the 17 - 21bar working system ensures efficient operation, helping renovation projects to progress smoothly.

Small-scale gardening project: In the greening construction of parks and courtyards, the bucket turning angle of 27°-114° can accurately complete the earth moving and seedling transplanting; the adjustable driving speed of 0-6km/h can be adapted to different operating rhythms, and the 180mm ground clearance can cope with the uneven ground without any pressure.

Warehouse logistics transfer: In the narrow warehouse aisle, the 500mm short tail design and 940mm wheelbase ensure flexible steering; 250Kg rated load and 0.12m³ bucket volume, efficiently completing the loading and unloading of goods and short-distance transportation to enhance the efficiency of warehouse operations.

Agricultural greenhouse operation: Shuttling between greenhouses, handling fertilizers, fruits and vegetables, the electric model has no exhaust emission, creating a green operating environment; the fuel model has long-lasting power to meet the needs of continuous operation for a long time, providing reliable support for agricultural production.

Main parameters

Why GC-S490L

1. Diversified power, according to the need to choose: electric and fuel multiple power configurations, electric models quiet and environmentally friendly, suitable for indoor and high environmental requirements of the place; fuel models powerful, to meet the needs of long hours, high-intensity operations, covering more use of the scene.




2. Compact body, easy to maneuver: 1100mm width, 1300mm height and 500mm short tail design, together with 940mm wheelbase, it can steer and move flexibly in narrow space, and arrive at the working place easily.




3. Efficient operation, reliable performance: fast working three and the appropriate bucket volume and digging force, combined with adjustable traveling speed and working system pressure, efficiently complete all kinds of work; 1200KG operating quality and high quality parts to ensure the stability and durability of the equipment.




4. Environmentally friendly and widely used: complying with Euro 5/EPA emission standards, not restricted by environmental protection policies; applicable to many fields such as renovation, gardening, logistics, agriculture, etc., providing efficient solutions for different industries.

Contact us today for customized configurations and real-time quotes.
