GC-L224-55B
Size：900mm*930mm*520mm
Mowing width ：550mm
Cutting deck height：0mm-200mm
Product Gallery
Product Information
Products

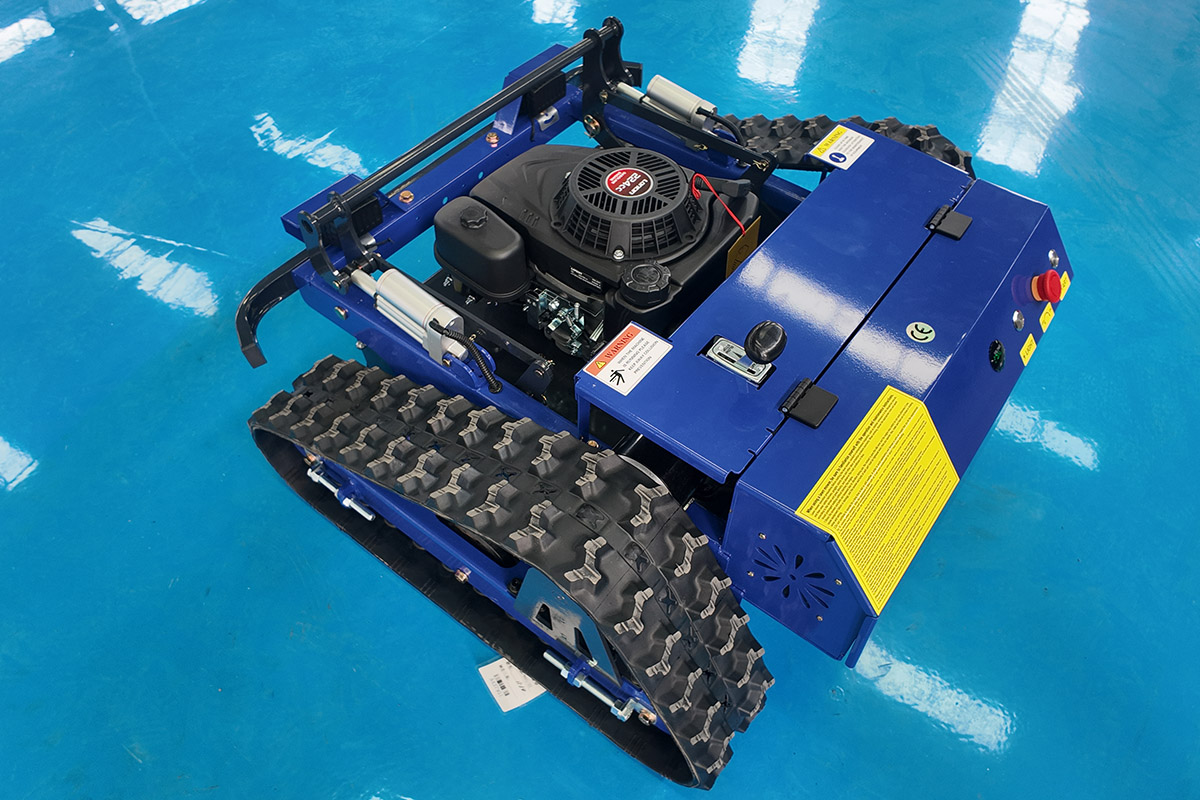

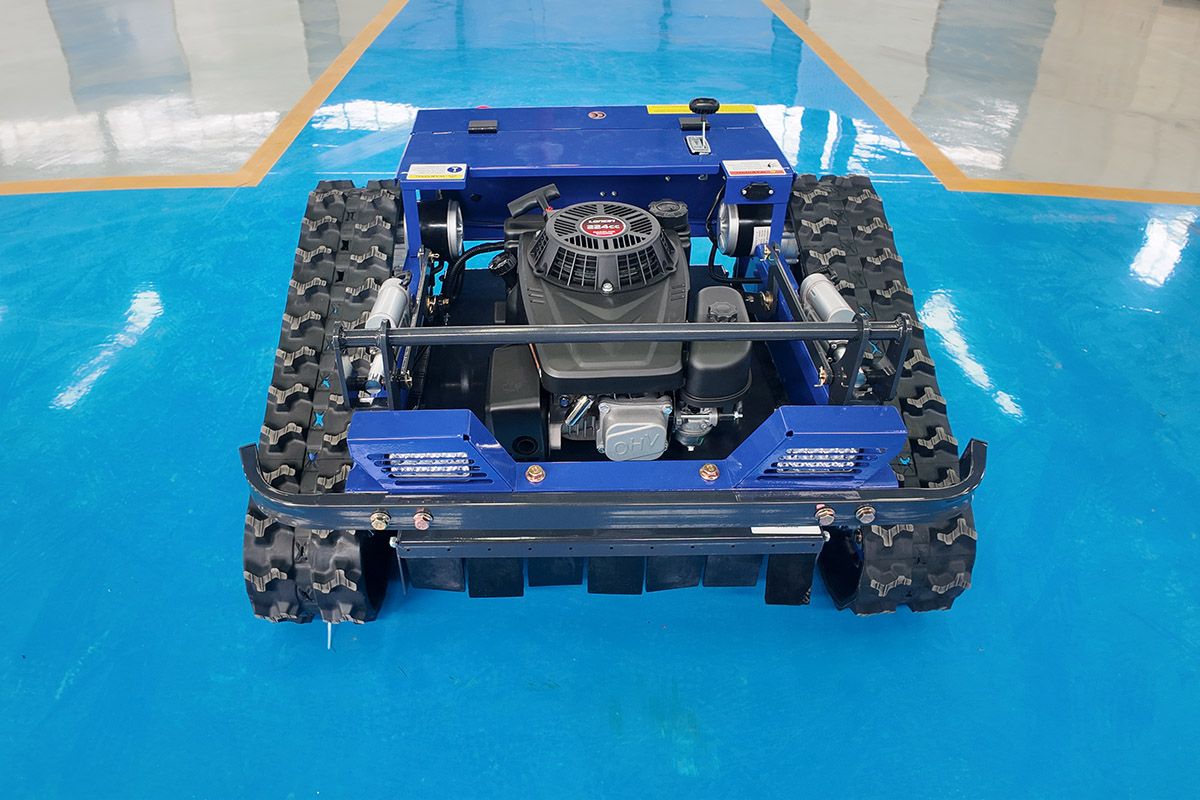

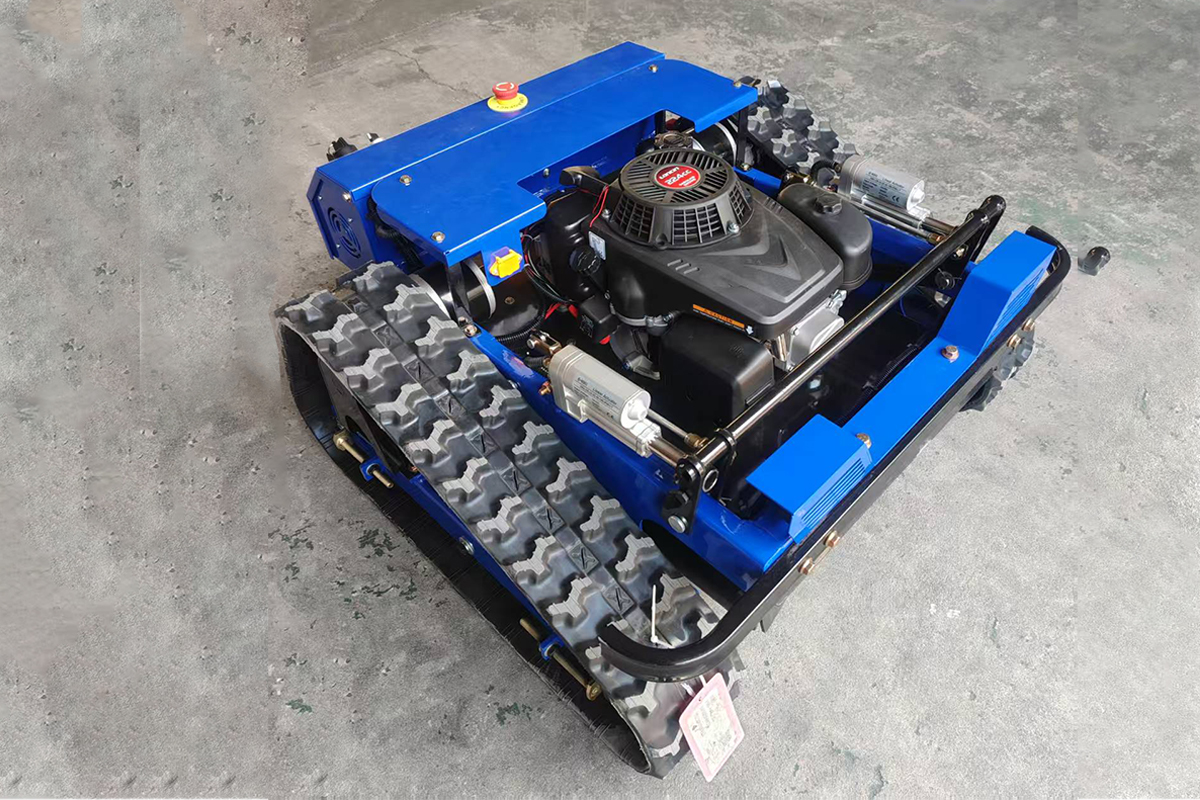

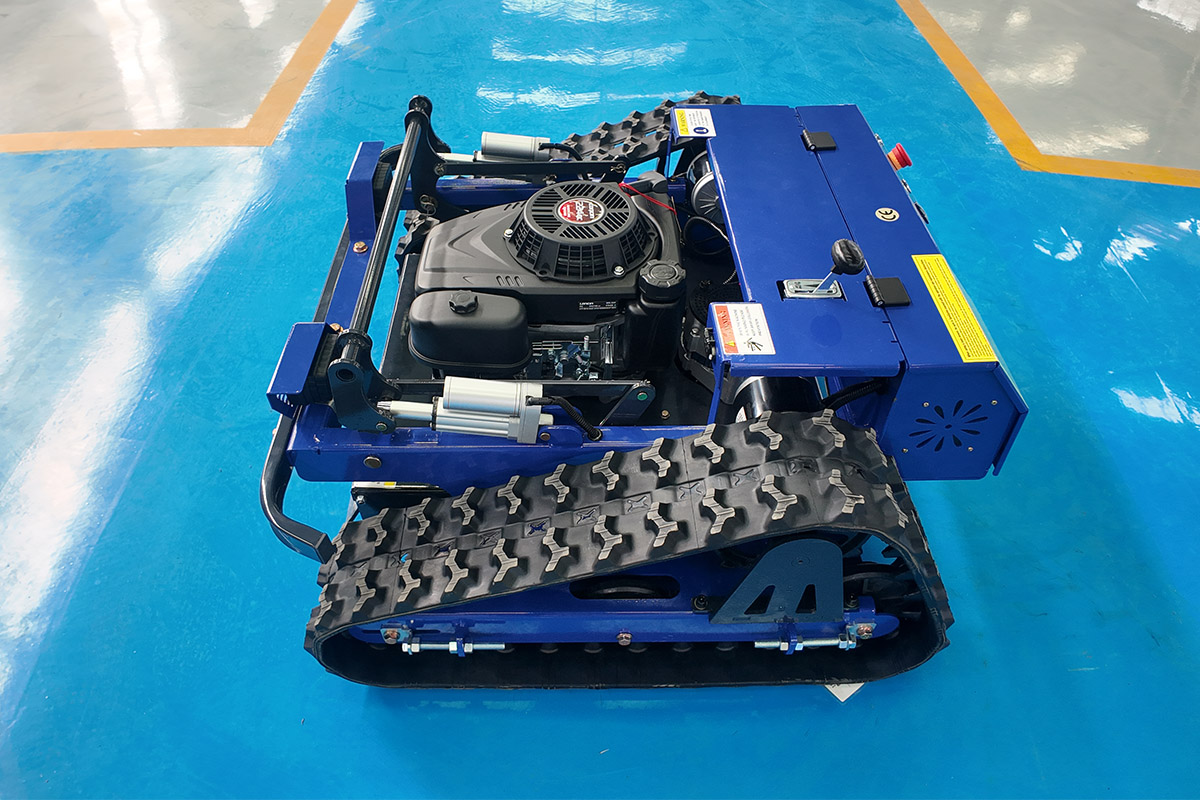

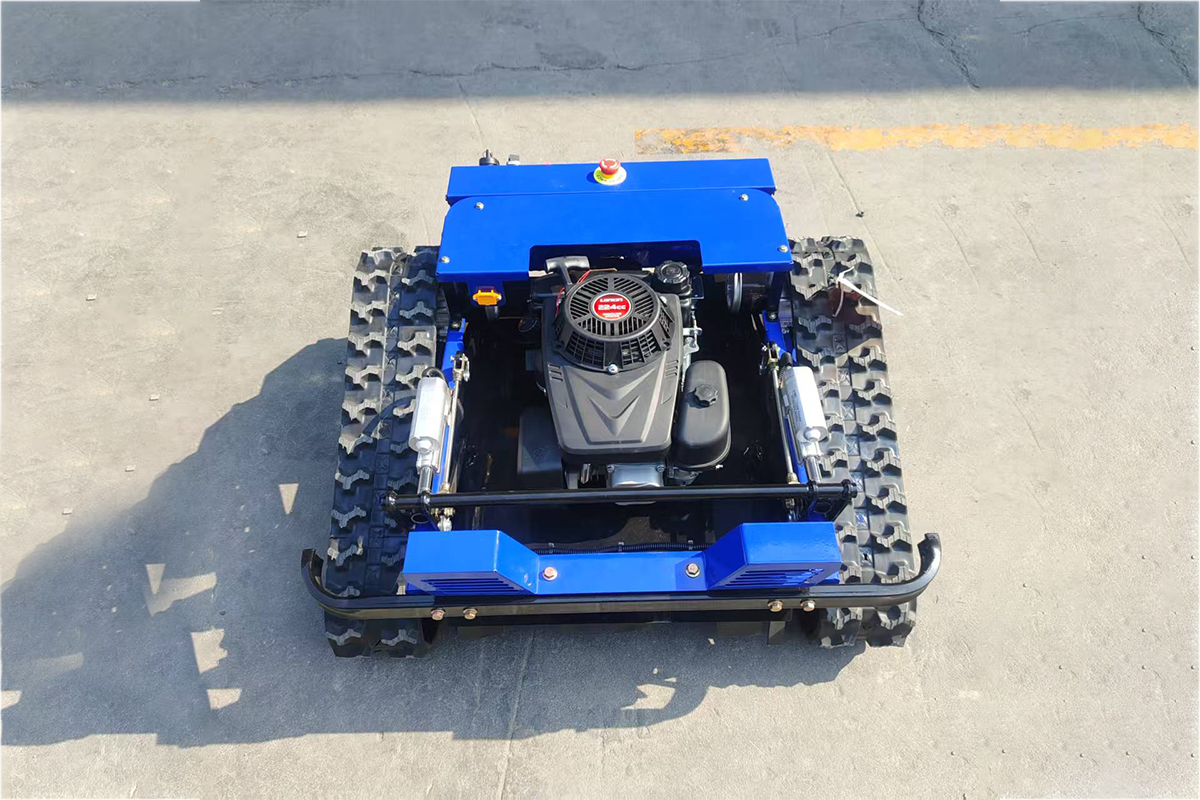

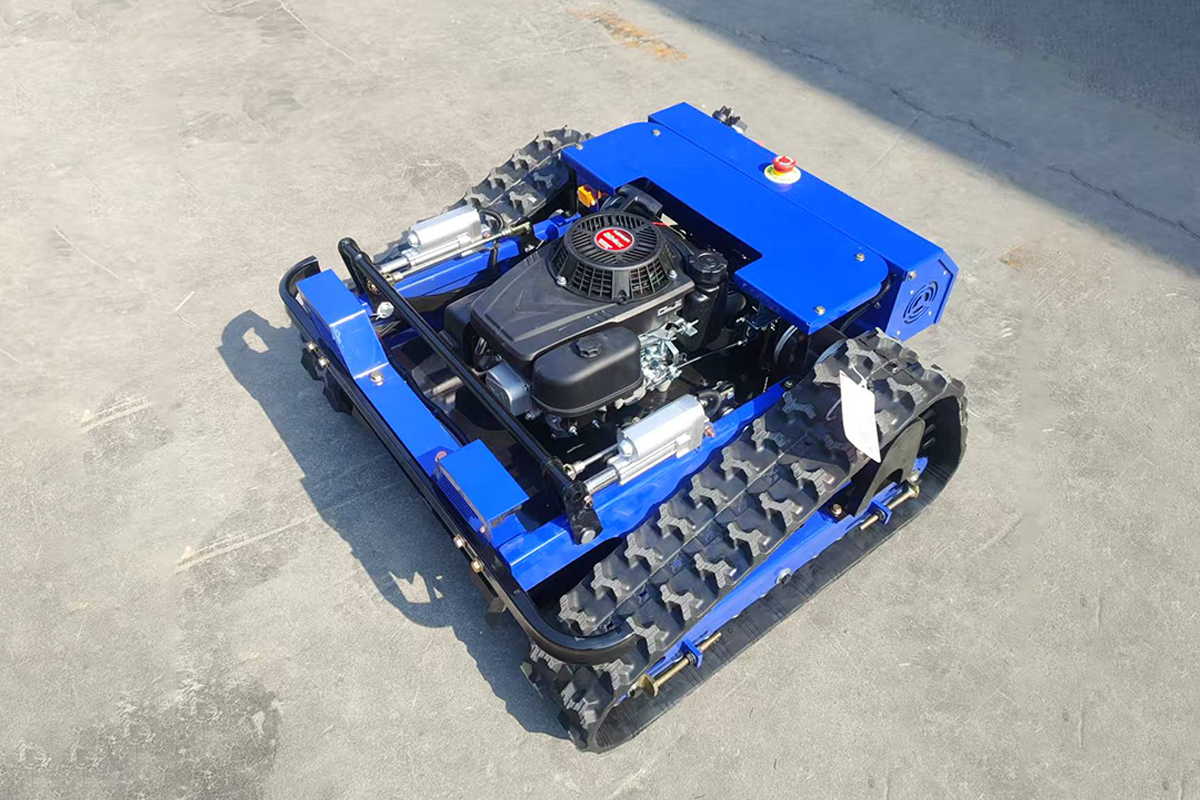

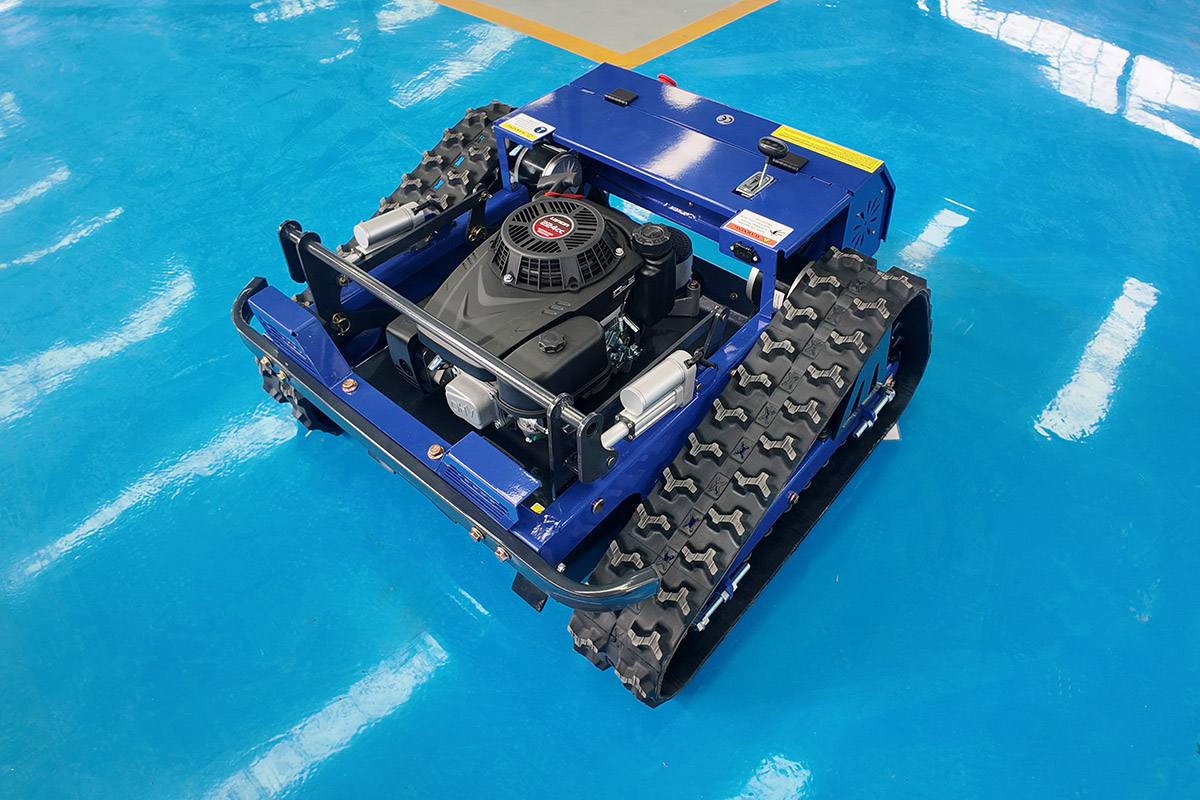

GC-L224-55B is designed for multi-scenario mowing needs, it is a “small mower” for complex terrain. 130kg weight with 900mm*930mm*520mm compact body, flexible and stable. Equipped with Loncin four-stroke engine, power 9hp, electric crawler self-propelled design, with 55cm mowing width and 20mm-200mm adjustable height of the cutting platform, supporting 200m remote control operation, whether it's barren grass, slopes, or orchards, nurseries, can easily and efficiently complete the mowing operation.
Usage Scenarios
Steep Slope Wasteland Mowing: In areas with slopes up to 50°, such as hillsides and heaths, the tracked walking provides superb grip to avoid skidding and overturning. Remote control allows the operator to safely control from 200m away, 55cm mowing width to cover a large area at a time, 9hp power to easily cut high density grass, no artificial risk of climbing, efficient and safe.
Orchard and Nursery Trimming: In orchards or nurseries, the 20mm-200mm adjustable mower height comes in handy -- lower the height to mow the lawn, higher the height to avoid fruit tree seedlings. Crawler walking will not compact the soil, 900mm width flexible shuttle in the gap between the fruit trees, remote control operation to avoid touching the seedlings, so that the orchard is clean and does not damage the crops.
Lawn and Weed Maintenance: For lawn or weed land, 0-5km/h adjustable walking speed is suitable for different grass densities, low-speed fine lawn mowing, high-speed efficient weed cleaning. Minimum ground clearance of 10mm ensures close to the ground cutting and smooth lawn after cutting; 55cm wide cutting reduces the number of round trips and greatly improves the maintenance efficiency.
Main parameter
Model | GC-L224-55B |
Scope of application | Barren grass, hengcheng, orchard, slope, nursery, lawn, etc. |
Package specifications | 950*980*710mm (L×W×H) |
Complete machine specifications | 900mm*930mm*560mm (L×W×H) |
Complete machine weight | 130kg |
Mowing width | 550mm |
Cutting deck adjustable height | 20mm-200mm |
Travel speed | 0-5km/h |
Maximum working slope | 50° |
Minimum off-ground clearance | 10mm |
Operation mode | Ballad control |
Travel mode | Electric crawler self-propelled |
Maximum remote control distance | 200m |
Brand | L0NCIH |
Work efficiency | 2500㎡/h |
Power | 9HP |
Form | Vertical axis |
Stroke | Four-stroke |
Starting Method | Electric start |
| Fuel | Gasoline |
Why GC-L224-55B

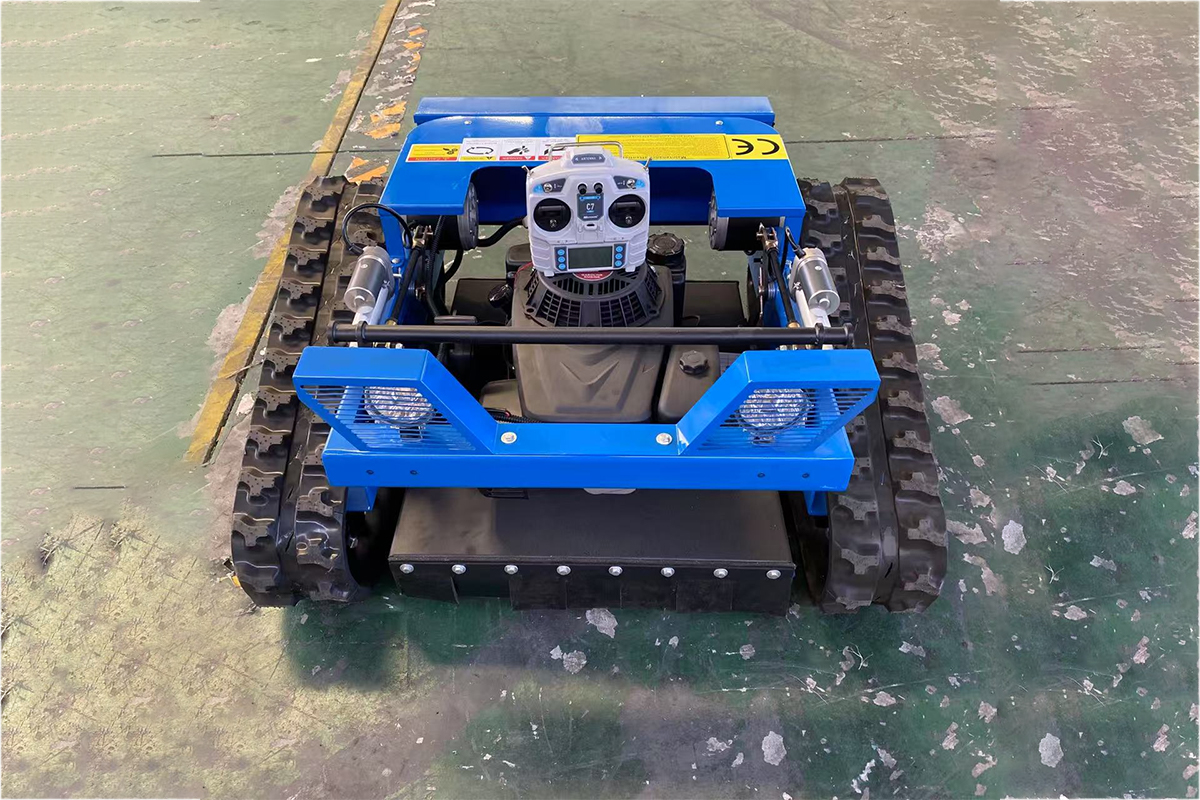

Remote control operation, easy and labor-saving: 200m remote control operation, no need to follow manually, stand in the safe area to complete the mowing, especially suitable for steep slopes, dense grass and other dangerous areas, greatly reducing labor intensity.
Complex terrain, unhindered: electric crawler walking design, with a maximum working slope of 50°, easy to deal with slopes, mud, gravel and other complex terrain, compared with wheeled mowers, stronger grip, not easy to slip.
Efficient and flexible, adaptable to multiple scenarios: 55cm wide cutting width improves operational efficiency, 20mm-200mm adjustable cutting table height, not only can be close to the ground mowing lawn, but also high cutting grass; 900mm width flexible shuttle orchard, nursery gap, without damage to crops.
Strong power, stable and reliable: Loncin four-stroke engine power 9hp, sufficient power, low fuel consumption; electric starter design with one-key start, crawler and motor quality assurance, stable and long-time operation without “falling off the chain”.
Contact us today for customized configurations and real-time quotes.
